| Client / Site | Indira Gandhi International Airport (IGIA), Delhi |
|---|---|
| Solution | ELEXI Smart Energy Ecosystem |
| Industry | Airport & Critical Infrastructure |
| Technology | IoT • Smart Energy Monitoring • Remote Control • Analytics |
01 – The Challenge
Large-scale airport infrastructure operates continuously and depends on reliable electrical systems across critical operational areas.
Traditional energy monitoring can make it difficult to maintain real-time visibility of consumption, identify abnormal usage, monitor electrical parameters and respond quickly to power-related events.
For an environment such as an airport, energy management therefore needs to move beyond conventional meter reading towards a connected, intelligent and continuously monitored system.
02 — The ELEXI Solution
NwareSoft implemented ELEXI at IGIA to enable intelligent energy monitoring and more efficient power management.
ELEXI combines its Smart Gateway, connected energy infrastructure and monitoring platform to create a connected energy management layer.

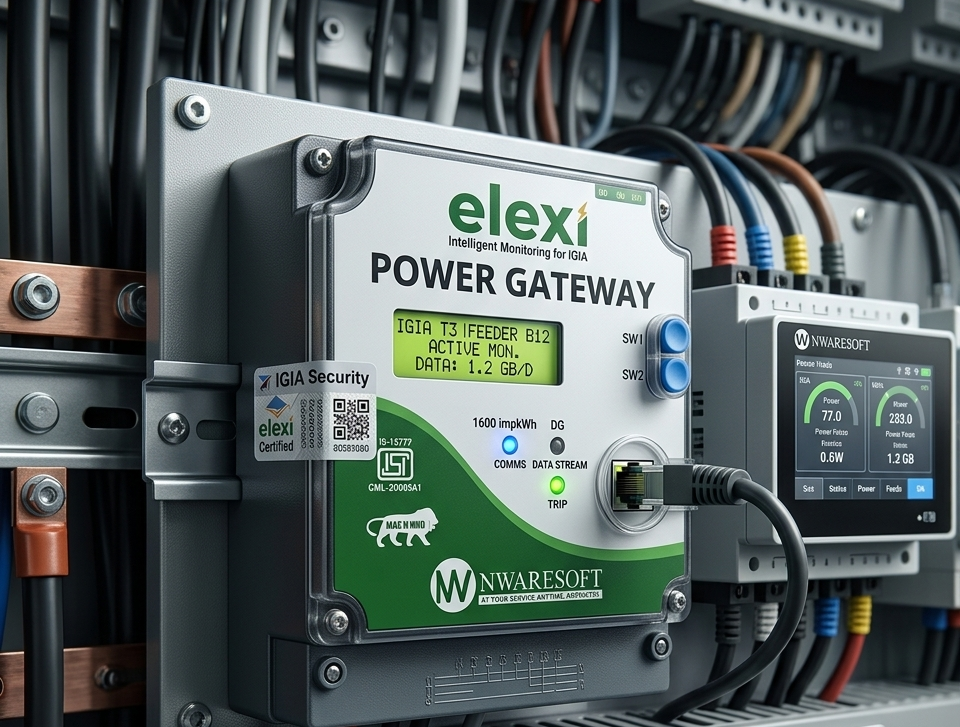

The ELEXI Gateway acts as the intelligence hub and supports real-time monitoring, remote ON/OFF control, protection features, communication connectivity and energy data management.

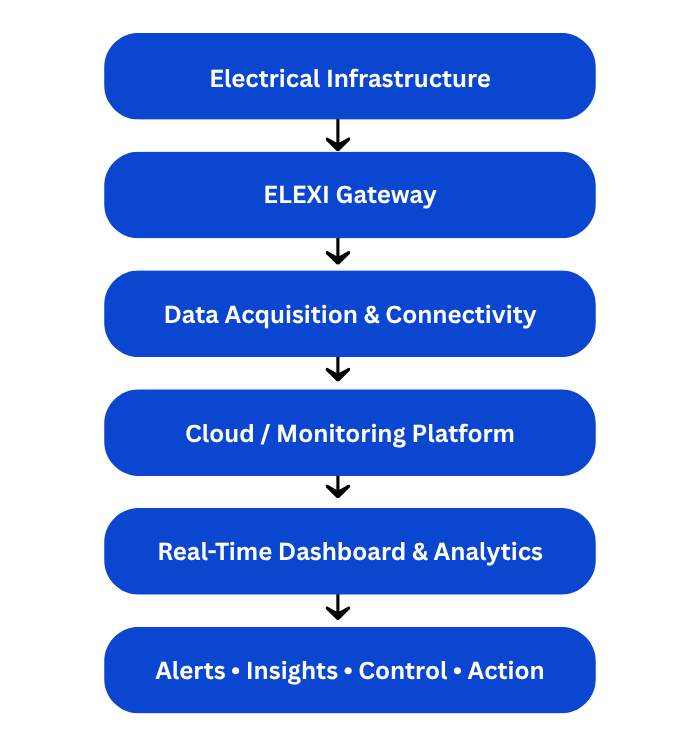

03 — How ELEXI Works
- Energy Data Collection
The ELEXI Gateway connects with the electrical infrastructure and captures relevant energy information for monitoring.
The platform supports real-time electricity monitoring and reporting, allowing users to see energy usage without depending solely on manual readings.
- Connected Monitoring
Collected data is made available through the connected ELEXI ecosystem, providing visibility into electricity consumption and electrical performance.
Users can monitor parameters such as units, kWh, load and voltage, along with usage reports and alerts.
- Intelligent Alerts
ELEXI can detect conditions such as abnormal usage, overload and other power-related events and generate alerts.
The platform also supports theft/tamper detection and notifications, adding an additional layer of visibility and security.
- Remote Control
The system supports remote power management, including remote ON/OFF control, enabling authorized users to manage connected electrical infrastructure without requiring physical access to the meter/device.
- Analytics & Historical Visibility
Energy data can be analysed over time through consumption analytics and historical records, helping teams understand usage patterns and identify areas requiring attention.

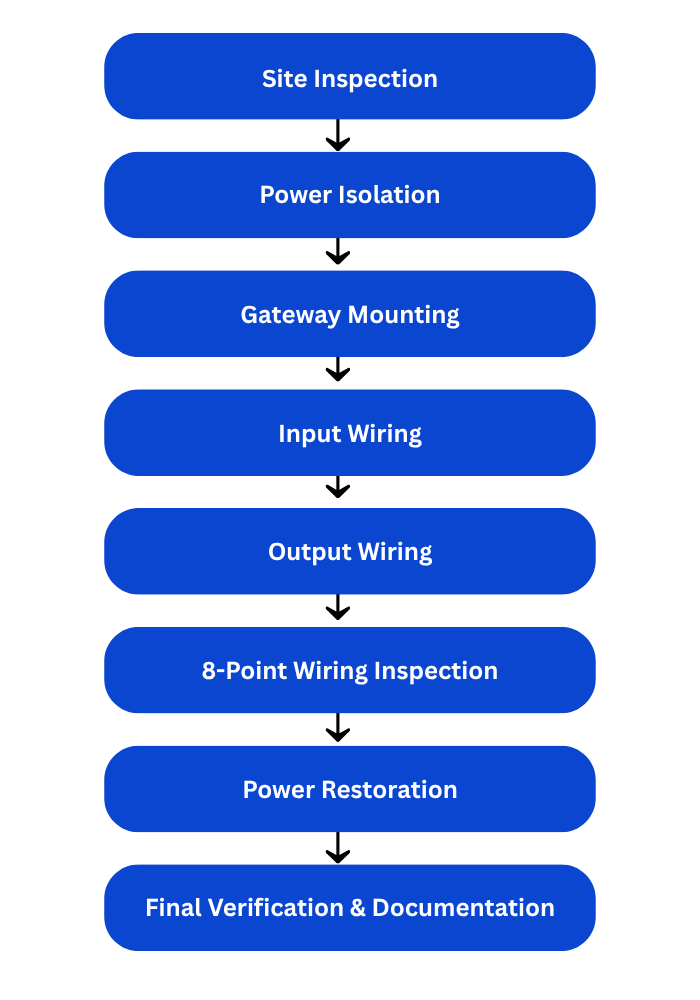

04 — Gateway Installation & Implementation
The ELEXI Gateway installation is designed around a protected electrical-panel setup.
For the documented installation procedure, the Gateway operates with a 3-phase, 415V AC supply, with R, Y, B and Neutral input/output terminals and a 4-pole MCB installed before the Gateway.
The installation SOP specifically requires the incoming supply to be isolated and zero voltage verified before wiring, followed by inspection of all eight input/output connections before energizing the device.
After wiring verification, the MCB is restored, Gateway status is checked and the output is verified before the panel is securely closed.
05 — Key Capabilities
| Capability | Description |
|---|---|
| Real-Time Energy Monitoring | Live visibility into electricity consumption and electrical parameters. |
| Remote Power Management | Remote ON/OFF control for connected infrastructure. |
| Protection & Safety | Support for overload, surge and tamper-related detection. |
| Intelligent Alerts | Notifications for abnormal usage, energy events and security conditions. |
| Energy Analytics | Consumption analysis and historical data for better operational decisions. |
| Enterprise Integration | ELEXI supports API integration with existing BMS and enterprise systems. |
06 — Business Impact
With ELEXI deployed at IGIA, the focus shifts from conventional electricity monitoring to connected energy intelligence. The solution enables:| Impact Area | Description |
|---|---|
| Better Visibility | Real-time access to energy consumption and electrical data. |
| Faster Response | Alerts and remote access help teams respond to abnormal conditions more quickly. |
| Operational Control | Connected infrastructure can be monitored and managed remotely. |
| Data-Driven Decisions | Historical consumption and analytics provide a stronger basis for energy-management decisions. |
| Scalable Energy Management | The ELEXI ecosystem is designed to support applications ranging from individual facilities to larger infrastructure environments. |
07 — Technology Stack
- IoT Gateway
- Smart Energy Metering
- Real-Time Monitoring
- Cloud Connectivity
- Mobile / Web Application
- API Integration
- Energy Analytics
- Alerts & Notifications
08 — Why ELEXI for Critical Infrastructure?
Airport infrastructure demands visibility, reliability and operational control.
ELEXI brings these capabilities together through a connected smart-energy ecosystem rather than treating energy measurement as an isolated activity.
Monitor. Analyse. Control. Optimise.
From electrical data collection at the Gateway to real-time monitoring and intelligent alerts, ELEXI creates a connected layer for smarter energy management.
ELEXI at IGIA — At a Glance
| Capability | Description |
|---|---|
| Real-Time Energy Monitoring | Live visibility into electricity consumption and electrical parameters. |
| Remote Power Management | Remote ON/OFF control for connected infrastructure. |
| Protection & Safety | Support for overload, surge and tamper-related detection. |
| Intelligent Alerts | Notifications for abnormal usage, energy events and security conditions. |
| Energy Analytics | Consumption analysis and historical data for better operational decisions. |
| Enterprise Integration | ELEXI supports API integration with existing BMS and enterprise systems. |
